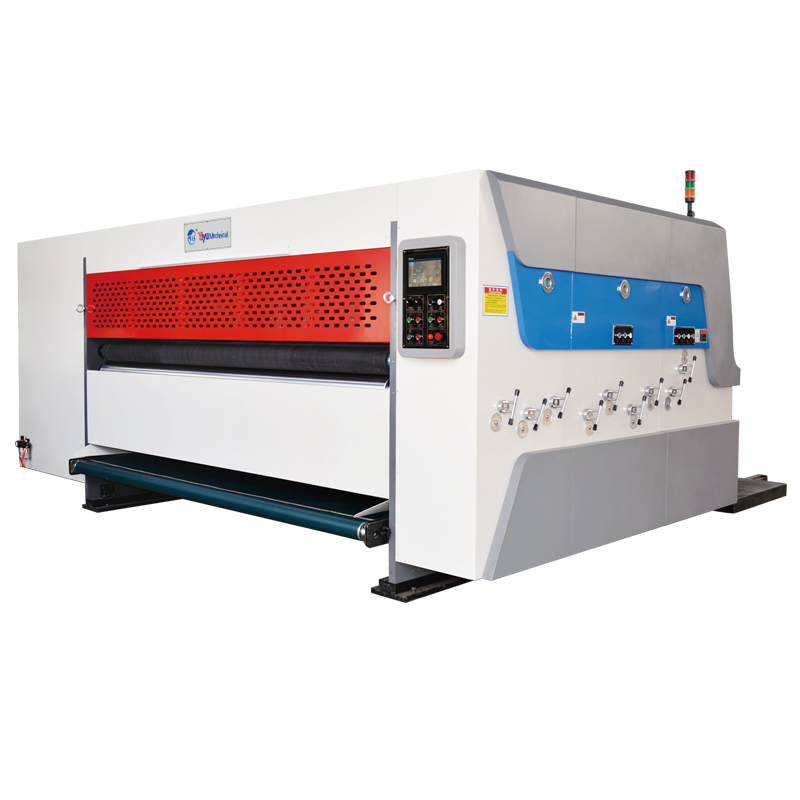

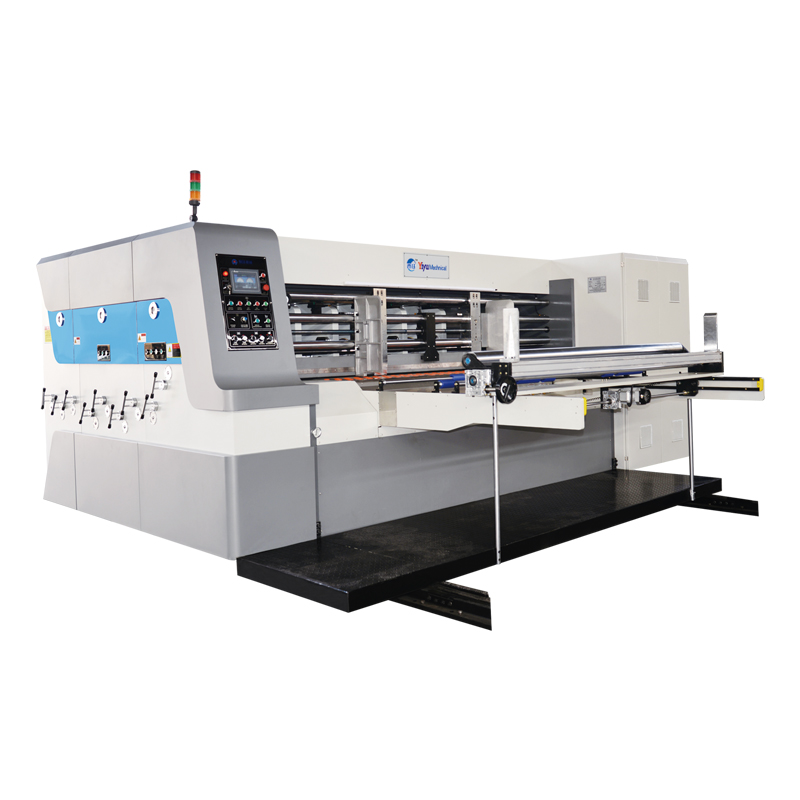

全伺服智能开槽碰线机

全伺服智能开槽碰线机

Fully Servo Intelligent Slotting And wire Collision Machine

功能与特点 function and characteristic

★本机是一台智能双模切开槽碰线纸箱机械，根据纸箱行业的发展需要精心研制而成并投放市场，深受市场的一致好评。

    主要针对家具箱及大规格纸箱和数码印刷及其他散单产品，该机器为客户解决了特大家具箱、特殊纸箱的生产难题。

★机器主要功能可一次完成三层、五层、七层瓦楞纸板：送纸、预压、压线、开槽、打孔、碰线、切高低舌头。

★纸箱开槽有两排刀座完成（前刀开前槽，后刀开后槽）可以完成高低盖，采用上模切刀，下优力胶垫辊及碰线，生产时纸箱

   正面朝下，成品后的纸箱外表美观。

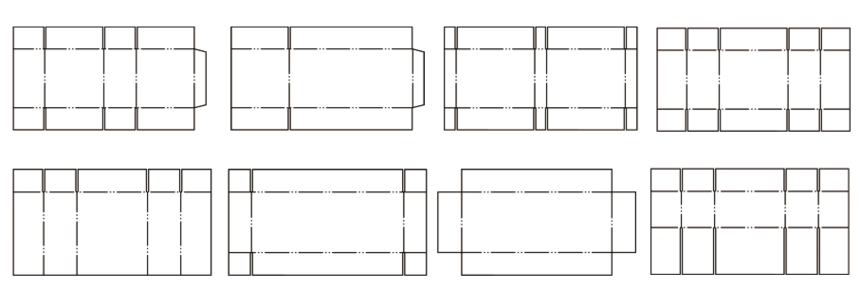

★整个机器由伺服电机和 PLC 触摸屏控制操作方便简单，可生产多款箱型，一键换单 20秒之内完成。

★前缘送纸采用伺服电机，确保送纸精度。双开槽部五刀盘分别由独立的伺服电机控制，前后两根刀轴由伺服电机单独控制，

    纵压线轴由伺服电机控制。主电机采用变频电机，前缘吸风机变频调整变频器控制风量。

★该机蕞主要特点是蕞小压线开槽宽度为40mm（其他机型：60-90mm），切角蕞大宽度200mm（其他机型50-100mm）

   碰线蕞小间距 150mm 碰线槽盖 40mm 速度为100 米。

★机器设计成三组（前缘送纸、双开槽部、碰线部）。

★ This machine is a high-end intelligent double-mode grooving touch line carton machinery, according to the development of the carton industry needs to carefully  developed  and  put  into the market, by the market praise. Mainly for furniture boxes and large size cartons and digital printing and other loose single products, the machine for customers to solve the production problems of large furniture boxes, special cartons.

★ The main functions of the machine can complete three, five and seven layers of corrugated board at a time: paper feeding, pre-pressing, line pressing, grooving,bore, line touching, cutting high and low tongue.

★The carton is slotted with two rows of knife seats (the front knife is slotted before, the back knife is slotted after) can complete the high and low cover, the upper die cutting knife, the lower force rubber cushion roll and the touch line, the carton face down when the production, the carton looks beautiful after the finished product.

★The whole machine is controlled by servo motor and PLC touch screen, which is convenient and simple to operate. It can produce many types of boxes.

★Servo motor is used in leading edge feeding to ensure the accuracy of feeding. The five cutter heads of the double slotted part are respectively controlled by independent servo motors, the front and rear cutter shafts are separately controlled by servo motors, and the longitudinal pressure bobbin is controlled by servo motors. The main motor adopts frequency conversion motor, and the leading edge suction fan is adjusted by frequency conversion to control the air volume.

★The main feature of this machine is the minimum pressure line slot width of 40mm(other models: 60-90mm), the maximum width of cutting Angle of 200mm(other models 50-100mm) the minimum distance between 150mm touch line slot cover 40mm speed of 100 meters.

★The machine is designed into three groups (leading edge feeding, double slotting part, longitudinal line part).
